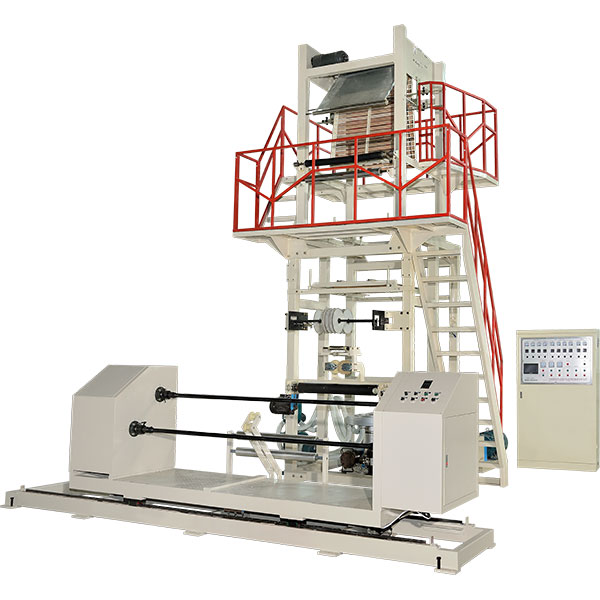

SJ50×2-800TNM
In the basis of original function,this line add the servodriven reciprocating winding technology to match the technological requirements of our Film Insert Machine.
|
Specifications |
|
|
Type |
SJ50×2-800TNM |
|
Max film width(mm) |
800 |
|
Film thickness(mm) |
0.02~0.05 |
|
Suitable raw material |
HD/LDPE/LLDPE/EVA |
|
Max output(kg/h) |
100 |
|
Screw diameter(mm) |
Ø50×2 |
|
Screw length-diameter ratio |
30:1 |
|
Max rotation speed of screw(r/min) SHAPE \* MERGEFORMAT |
90 |
|
Power of extrusion motor(kW) |
15×2 |
|
Mold diameter(mm) |
Ø120 |
|
Total power(kW) |
60 |
|
Towing speed(m/min) |
60~90 |
|
Total weight(T) |
3.5 |
|
Dimension(L×W×H)(m) |
5×3.5×5 |
